The Relay Error That Started the Blackout
The Sir Adam Beck transmission relay failure started a chain reaction that exposed weaknesses in the connected power system.
On this page
- The Sir Adam Beck system and relay setting
- How one line failure spread across the grid
- Why protection systems became the focus
Page outline Jump by section
Introduction
The relay failure at the Sir Adam Beck hydroelectric complex was the first mechanical step in the chain reaction that became the Northeast Blackout of 1965. The immediate cause was not a failure of the generators themselves, but an incorrectly set protective relay on a 230-kilovolt transmission line leaving Sir Adam Beck Generating Station No. 2 near Queenston, Ontario. At about 5:16 p.m. on 9 November 1965, the relay responded to a normal but heavily loaded power condition as though it were a fault, opening a major transmission path and forcing the electrical system to redistribute the lost flow.[Wikipedia]WikipediaNortheast blackout of 1965Northeast blackout of 1965
The importance of the Sir Adam Beck event was that a single protection-system error became a grid-wide stability problem. The relay operated as designed according to its settings, but those settings did not match the actual operating conditions of the interconnected network. The resulting overloads caused additional transmission lines to trip, isolating generation, destabilising power flows, and turning a local equipment action into one of the largest blackouts of the twentieth century.[the Blackout report]theblackoutreport.co.uknortheastern blackout usa canada 1965the Blackout reportThe Northeastern Blackout 1965 | the Blackout reportNovember 11, 2019…
The Sir Adam Beck system and relay setting
Sir Adam Beck Generating Station No. 2 was a major hydroelectric facility on the Niagara River, supplying large amounts of electricity to Ontario through a network of high-voltage transmission lines. By 1965, the Ontario and northeastern United States power systems were increasingly interconnected, allowing utilities to share electricity across long distances. That interconnection improved reliability during normal operation, but it also meant that disturbances could travel beyond their original location.[Wikipedia]WikipediaSir Adam Beck Hydroelectric Generating StationsSir Adam Beck Hydroelectric Generating Stations
The critical component was a protective relay installed on one of the transmission lines from the Beck station. Protective relays are automatic electrical monitoring devices: they detect abnormal conditions such as excessive current, overloads, or faults and instruct circuit breakers to disconnect equipment before damage occurs. In this case, the relay was intended as a backup protection device, but its trip setting was too sensitive for the conditions that existed on the evening of the blackout.[Wikipedia]WikipediaNortheast blackout of 1965Northeast blackout of 1965
Investigations after the blackout identified the relay setting as the initiating error. The Federal Power Commission’s report concluded that the failure originated with protection equipment at the Beck facility and examined the sequence of transmission line openings that followed. The report became the central technical record for understanding how the event developed.[Google Books]books.google.comNortheast Power FailureGoogle BooksNortheast Power Failure: November 9 and 10, 1965: a Report to the President - United States. Federal Power Commission - Goog…
The problem was not that the relay was defective in the ordinary sense. It performed the action it had been configured to perform. The weakness was the mismatch between the protection scheme and the real operating environment of a heavily loaded, interconnected grid. Later analyses noted that settings based on earlier system conditions had not adequately reflected the changes in power flows by 1965.[apl.uw.edu]apl.uw.eduAnalysis of Critical Infrastructure InteractionsAnalysis of Critical Infrastructure Interactions
How one line failure spread across the grid
The cascade began when the relay opened one of the major 230-kilovolt lines carrying power from Sir Adam Beck towards southern Ontario. At the moment the line disconnected, the electricity it had been carrying did not disappear; instead, it immediately shifted onto parallel transmission paths. Those remaining lines suddenly carried more power than they had been designed to handle under normal conditions.[the Blackout report]theblackoutreport.co.uknortheastern blackout usa canada 1965the Blackout reportThe Northeastern Blackout 1965 | the Blackout reportNovember 11, 2019…
The overloaded lines then triggered their own protective systems. One after another, additional transmission links disconnected, separating the Beck generation complex from parts of Ontario’s electricity network. The loss of these connections created a new imbalance: the Beck generators still had the ability to produce large amounts of electricity, but the transmission network could no longer safely carry that power where it was needed.[Wikipedia]WikipediaNortheast blackout of 1965Northeast blackout of 1965
The disturbance then moved across the international grid connection into New York State. Power flows shifted unexpectedly through neighbouring systems, causing further overloads and protective trips. Within minutes, the network broke into separated “islands” of generation and demand, with some areas retaining power while others lost supply entirely.[Wikipedia]WikipediaNortheast blackout of 1965Northeast blackout of 1965
The sequence demonstrated the defining feature of a cascading blackout: the initial event may be small, but each protective action can change the electrical conditions faced by the remaining system. In 1965, the grid’s automatic safeguards successfully prevented equipment destruction, but they also contributed to the rapid expansion of the outage because there were not enough controls to contain the disturbance.[Google Books]books.google.comNortheast Power FailureGoogle BooksNortheast Power Failure: November 9 and 10, 1965: a Report to the President - United States. Federal Power Commission - Goog…

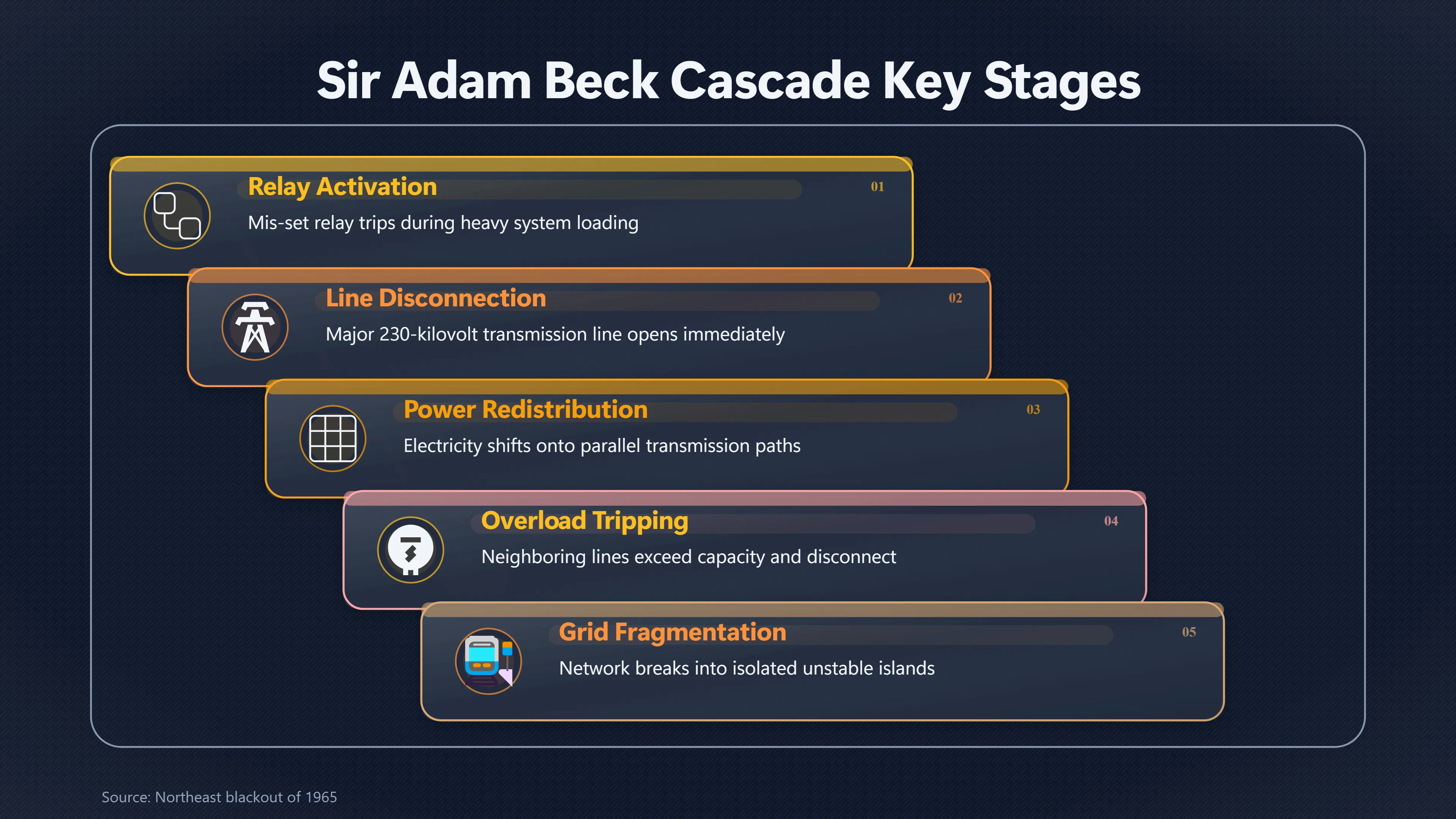

A simplified chain of events was:
- A mis-set relay at Sir Adam Beck operated during heavy system loading.
- A 230-kilovolt transmission line disconnected.
- Power shifted onto neighbouring lines.
- Those lines became overloaded and tripped.
- Beck generation became separated from the wider Ontario system.
- Disturbances spread through connected systems in New York and New England.
- The regional grid separated into unstable sections, causing widespread loss of power.[the Blackout report]theblackoutreport.co.uknortheastern blackout usa canada 1965the Blackout reportThe Northeastern Blackout 1965 | the Blackout reportNovember 11, 2019…
Why protection systems became the focus
The Sir Adam Beck relay failure changed how engineers viewed large interconnected power systems. Before 1965, many planners believed that the growing network of connections between utilities would mainly improve reliability by allowing power to be shared during local problems. The blackout showed that interconnection could also provide a pathway for disturbances to spread if protection systems were not coordinated carefully.[apl.uw.edu]apl.uw.eduAnalysis of Critical Infrastructure InteractionsAnalysis of Critical Infrastructure Interactions
The investigation therefore focused not only on the relay itself, but on the wider protection philosophy behind the grid. Engineers examined whether relay settings, transmission planning, operating procedures and communication between utilities were adequate for a system operating under increasing demand and complexity. The Federal Power Commission report included recommendations aimed at preventing similar failures through improved coordination and analysis.[Google Books]books.google.comNortheast Power FailureGoogle BooksNortheast Power Failure: November 9 and 10, 1965: a Report to the President - United States. Federal Power Commission - Goog…
One major lesson was that reliability depended on more than preventing individual equipment failures. A power grid had to be designed to withstand combinations of events: the loss of a line, the redistribution of power, the response of protective devices, and the possibility that automatic actions could unintentionally accelerate a collapse.[apl.uw.edu]apl.uw.eduAnalysis of Critical Infrastructure InteractionsAnalysis of Critical Infrastructure Interactions
The Sir Adam Beck relay incident remains a classic example of a cascading failure because the first mistake was limited and identifiable, yet the consequences depended on the structure of the entire network. The blackout was not caused by a single broken machine; it was caused by the interaction between a protection setting, stressed transmission paths, and an interconnected grid that lacked sufficient safeguards against rapid escalation.[Wikipedia]WikipediaNortheast blackout of 1965Northeast blackout of 1965
