Did Radar Confirm Another Object?

Introduction

The radar evidence in the JAL 1628 sighting over Alaska is the part of the case that moved it beyond a single pilot report, but it never became a clear confirmation of a separate physical object. During the 17 November 1986 encounter, air traffic controllers and military radar operators reported unusual returns near the Japan Airlines Boeing 747, apparently at the same time the crew described nearby lights. However, later interpretations of the radar data differed sharply: some investigators argued that the signals represented an additional object, while FAA-related explanations pointed to known radar effects such as false or duplicated returns.[UPI]upi.comController confirms UFO sightingController confirms UFO sighting - UPI ArchivesDecember 30, 1986…Published: December 30, 1986

The central question is therefore narrower than “did radar detect a UFO?” The surviving evidence shows that radar systems recorded unusual information associated with the flight, but the records do not provide an uncontested measurement of an unknown craft. The dispute concerns what the radar returns represented: a genuine independent target, a radar artefact, or an unresolved combination of technical limitations and unusual circumstances.[Project Archives: Non-Human Intelligence]nhinewsnetwork.comjal flight 1628Project Archives: Non-Human IntelligenceJapan Air Lines Flight 1628 | Northeastern Alaska, 1986 | Project Archives: Non-Human Intelligence…

FAA and radar observations

What controllers actually saw

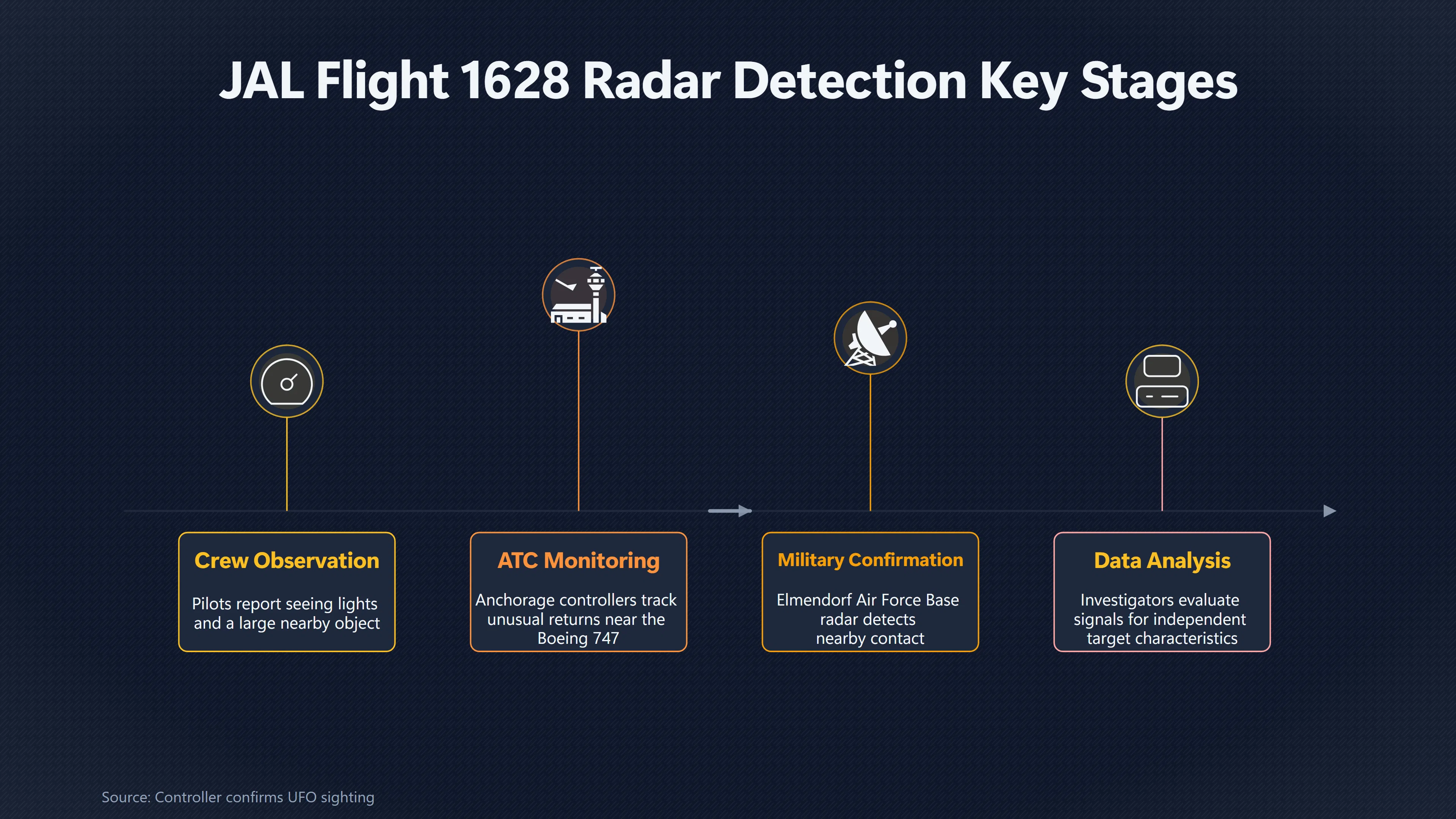

The FAA investigation focused on radar information collected during the encounter. Anchorage Air Route Traffic Control Centre personnel were monitoring JAL Flight 1628 while the crew reported lights near the aircraft. A controller’s account stated that an unidentified radar return appeared close to the Boeing 747 and remained near it during parts of the incident. Contemporary reporting also noted that Air Force radar personnel confirmed detecting something in the vicinity, although military officials suggested possible non-object explanations such as clutter or interference.[UPI]upi.comController confirms UFO sightingController confirms UFO sighting - UPI ArchivesDecember 30, 1986…Published: December 30, 1986

The radar evidence was unusual because it appeared alongside multiple human observations. The JAL crew reported seeing lights and a larger object, while controllers attempted to determine whether the aircraft was accompanied by known traffic. The apparent overlap between visual reports and radar returns became the strongest argument for those who considered the case significant. A radar contact occurring at the same time as a pilot report can increase confidence that something was present, but it does not by itself identify the nature of that something.[UPI]upi.comController confirms UFO sightingController confirms UFO sighting - UPI ArchivesDecember 30, 1986…Published: December 30, 1986

The records discussed in later accounts included FAA radar information and reports of military radar observations from Elmendorf Air Force Base. Some investigators, including former FAA official John Callahan, argued that the combined radar material showed more than a simple aircraft return. Other analyses have stressed that the publicly available technical details do not establish a verified independent target.[Project Archives: Non-Human Intelligence]nhinewsnetwork.comjal flight 1628Project Archives: Non-Human IntelligenceJapan Air Lines Flight 1628 | Northeastern Alaska, 1986 | Project Archives: Non-Human Intelligence…

Possible radar artefacts

The split-return explanation

The main technical challenge to the “separate object” interpretation is the possibility of a radar artefact. Radar does not display a perfect picture of the sky; it processes reflected signals, transponder information, and electronic filtering. Under certain conditions, a radar system can display duplicate or misleading returns that appear separate from the actual aircraft.

FAA explanations focused on what was described as an “uncorrelated primary and beacon target” — a situation in which radar information from the aircraft’s transponder and radar reflections did not align perfectly, creating an additional-looking contact. In this interpretation, the apparent second target was not another aircraft or unknown object but a product of the radar system’s processing.[Reddit]reddit.comNew Documents on the Japanese Airlines JAL 1628 UFO Encounter, November 17, 1986December 13, 2019…Published: November 17, 1986

A related explanation discussed by sceptical investigators is the “split image” possibility, where a single aircraft can produce a duplicate radar presentation. The idea became particularly important because JAL 1628 itself was a large Boeing 747, operating in conditions where unusual radar behaviour could create confusing returns.[Project Archives: Non-Human Intelligence]nhinewsnetwork.comjal flight 1628Project Archives: Non-Human IntelligenceJapan Air Lines Flight 1628 | Northeastern Alaska, 1986 | Project Archives: Non-Human Intelligence…

Supporters of the unknown-object interpretation have challenged these explanations by arguing that the radar behaviour seemed inconsistent with a simple duplicate return. They point to reports that the radar contact appeared to maintain a relationship with the aircraft and note that the visual reports occurred at the same time. The dispute remains unresolved partly because the publicly available material does not provide a complete modern technical reconstruction of every radar signal and processing stage involved.[Project Archives: Non-Human Intelligence]nhinewsnetwork.comjal flight 1628Project Archives: Non-Human IntelligenceJapan Air Lines Flight 1628 | Northeastern Alaska, 1986 | Project Archives: Non-Human Intelligence…

Why military radar did not settle the question

The involvement of military radar gave the case additional weight, but it did not remove the uncertainty. Reports stated that Air Force systems detected a contact near the JAL aircraft, yet military officials also considered explanations involving clutter or radar effects. The existence of a radar return was therefore not the same as confirmation of a physical object.[UPI]upi.comController confirms UFO sightingController confirms UFO sighting - UPI ArchivesDecember 30, 1986…Published: December 30, 1986

This distinction is important in aviation investigations. Radar is evidence of detected signals, not automatically evidence of a solid object with known characteristics. Investigators must determine whether a return has consistent movement, independent tracking behaviour, and characteristics that distinguish it from atmospheric effects, electronic anomalies, reflections, or another known source. The JAL 1628 case became controversial because the evidence reached the first stage — unusual detection — but remained disputed at the stage of identification.[The Cold File]thecoldfile.com1986 jal 1628The Cold FileThe Walnut over Fort Yukon: The JAL 1628 UAP Encounter Over Alaska, 17 November 1986 | The Cold File…Published: November 1986

Why the evidence remains disputed

The JAL 1628 radar record occupies an unusual middle ground. It is stronger than a case based only on a witness statement because several aviation professionals and radar operators were involved. At the same time, it is weaker than a conventional aviation incident with preserved, independently analysed sensor data showing a confirmed unknown vehicle.[UPI]upi.comController confirms UFO sightingController confirms UFO sighting - UPI ArchivesDecember 30, 1986…Published: December 30, 1986

The strongest argument for a genuine unknown target is the apparent convergence of evidence: the crew reported seeing something unusual, FAA personnel recorded radar activity, and military radar was also reported to have detected a nearby return. For supporters of this interpretation, the timing and multiple observers make a purely accidental explanation difficult.[Project Archives: Non-Human Intelligence]nhinewsnetwork.comjal flight 1628Project Archives: Non-Human IntelligenceJapan Air Lines Flight 1628 | Northeastern Alaska, 1986 | Project Archives: Non-Human Intelligence…

The strongest argument against a separate physical object is that the radar evidence has not been shown publicly to require that conclusion. Known radar limitations, including false or duplicated returns, provide plausible alternatives. The FAA’s own released material included discussion that radar data did not conclusively support the presence of an unidentified craft, even though controllers had reported unusual observations.[UPI]upi.comController confirms UFO sightingController confirms UFO sighting - UPI ArchivesDecember 30, 1986…Published: December 30, 1986

The unresolved nature of the radar evidence is what keeps the case important in discussions of unidentified aerial phenomena. It demonstrates both the value and the limits of sensor data: radar can strengthen a report by adding independent information, but without complete technical records and a verified explanation of the signal source, it may leave the central question unanswered.[The Cold File]thecoldfile.com1986 jal 1628The Cold FileThe Walnut over Fort Yukon: The JAL 1628 UAP Encounter Over Alaska, 17 November 1986 | The Cold File…Published: November 1986
