Did Radar Confirm the RB 47 Mystery?
The aircraft's electronic systems became central because investigators debated whether the detected signals represented a real source or a technical
On this page
- How RB 47 electronic systems detected signals
- Ground radar and airborne observations compared
- Limits of surviving technical records
Page outline Jump by section
Introduction
The radar and electronic countermeasures (ECM) evidence is the feature that makes the 1957 RB-47 incident unusually important among Cold War unidentified aerial cases. Unlike a sighting based only on a pilot’s impression, the encounter involved an RB-47H reconnaissance aircraft carrying electronic intelligence equipment designed to detect and analyse radar emissions, alongside reports of a related ground radar contact. The central question was not simply whether the crew saw an unusual light, but whether military sensors detected a real external signal source.[NCAS Files]files.ncas.orgFiles Condon Report, Case 5: B-47 Crew, Radar/Visual SightingNCAS FilesCondon Report, Case 5: B-47 Crew, Radar/Visual Sighting…
The evidence remains disputed because the surviving record is incomplete. Investigators found testimony describing simultaneous visual, airborne electronic, and ground radar observations, but the original technical recordings and full instrument data were not available for later independent examination. The result is a case where the detection chain is unusually rich, yet the ability to verify every technical detail is limited.[NCAS Files]files.ncas.orgFiles Condon Report Section III, Chapter 1: Field StudiesNCAS FilesCondon Report Section III, Chapter 1: Field Studies…

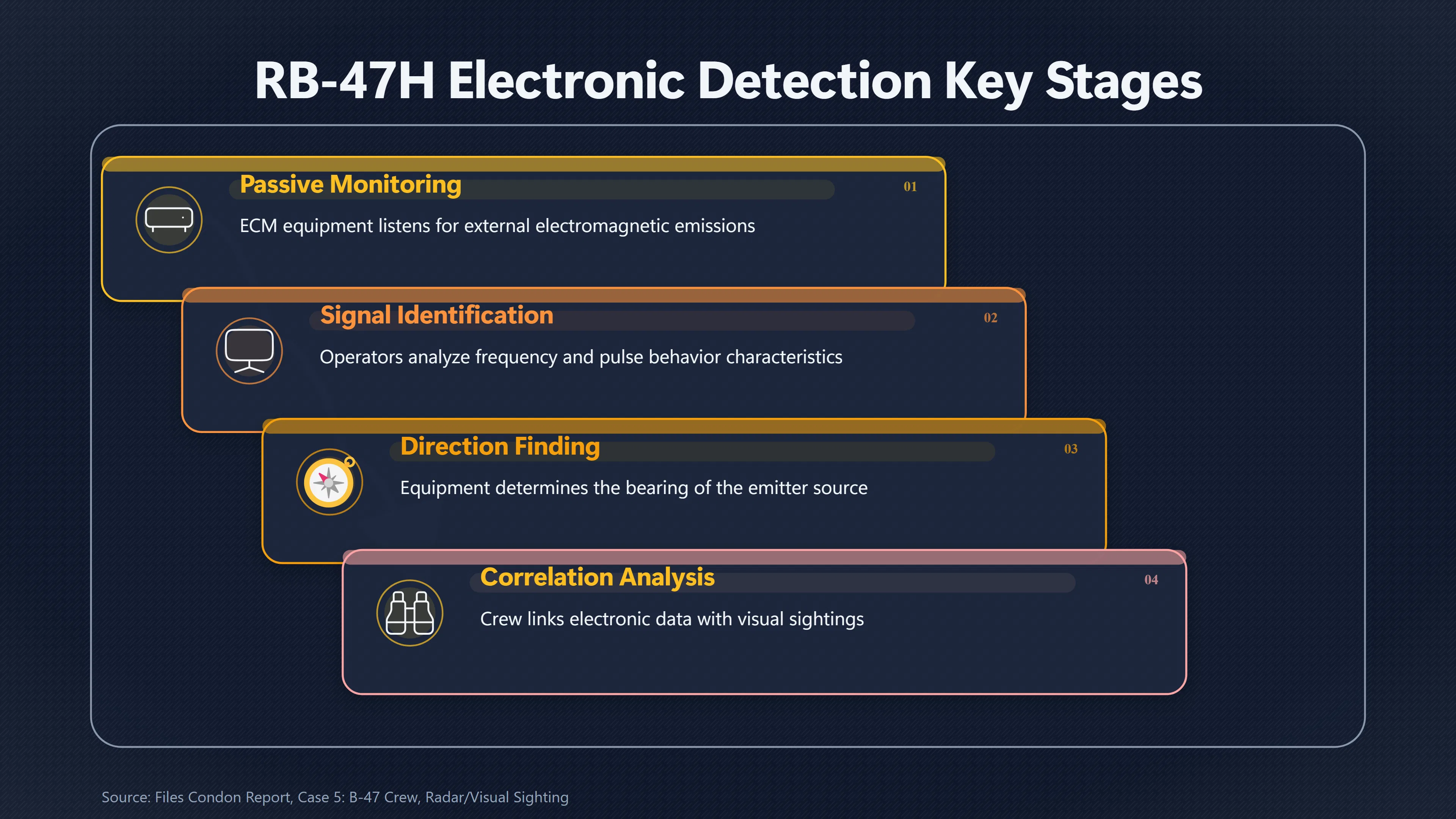

How RB-47 electronic systems detected signals
The RB-47H was not a normal bomber modified only for observation; it was a dedicated electronic reconnaissance aircraft. Its mission included electronic countermeasures training, and three crew members operated specialised equipment intended to intercept and analyse radar signals. These systems were passive: they listened for electromagnetic emissions rather than transmitting a radar pulse of their own.[Nicap]nicap.orgRB - 47 Case. July,1971…
This distinction matters because a conventional radar detects objects by sending out energy and receiving echoes. The RB-47’s ECM equipment instead searched for the “fingerprints” of radar transmitters — characteristics such as frequency, pulse behaviour, and direction of arrival. A detected signal therefore suggested the presence of an emitter somewhere in the environment, although the equipment alone did not automatically identify what produced it.[Ufologie]ufologie.patrickgross.orgUFOs at close sight: AIAA and the UFO problem, the RB-47 case…
During the 17 July 1957 flight, the electronic warfare operators reported detecting a strong radar-like signal that appeared associated with an unknown source. Later accounts described the signal as being in the microwave region, often reported around 2,800 MHz. The Condon Report investigation recorded the case as involving a glowing source that was also associated with electromagnetic radiation detected by airborne monitoring equipment.[NCAS Files]files.ncas.orgFiles Condon Report, Case 5: B-47 Crew, Radar/Visual SightingNCAS FilesCondon Report, Case 5: B-47 Crew, Radar/Visual Sighting…
The unusual claim was not merely that a signal existed, but that the signal appeared to track with the aircraft’s movement. According to later investigators, the RB-47 crew believed the contact maintained a relationship with the aircraft over a substantial distance, creating the impression of a moving emitter rather than a distant fixed radar installation.[NCAS Files]files.ncas.orgFiles Condon Report Section III, Chapter 1: Field StudiesNCAS FilesCondon Report Section III, Chapter 1: Field Studies…
Ground radar and airborne observations compared
The strength of the RB-47 evidence comes from the reported agreement between separate detection methods. The crew’s visual observations, the aircraft’s ECM receivers, and a ground Air Defense Command radar station near Duncanville, Texas, were all said to have detected a related target. Supporters of the case argue that this combination reduces the likelihood of a simple visual misidentification.[Nicap]nicap.orgRB - 47 Case. July,1971…
The reported sequence involved several unusual features:
- Visual observation: Crew members described a bright luminous object that appeared to remain near the aircraft for part of the encounter.
- Airborne electronic detection: ECM operators reported receiving radar-like emissions from the direction of the apparent object.
- Ground radar correlation: A Duncanville radar installation was reported to have tracked a contact corresponding with the RB-47 crew’s observations.[Nicap]nicap.orgUFO ReportUFO Report…
For investigators, the most significant point was the claimed correlation between systems that worked differently. A visual observer can misjudge distance or movement; a radar operator can misinterpret returns; an electronic receiver can detect signals without knowing the transmitter’s identity. But if independent systems record the same event at the same time, the question becomes more complicated: not “was something observed?” but “what physical source produced the observations?”[NCAS Files]files.ncas.orgFiles Condon Report Section III, Chapter 1: Field StudiesNCAS FilesCondon Report Section III, Chapter 1: Field Studies…
The Condon Report highlighted this multi-sensor aspect when reviewing the case. It noted that the incident involved a B-47 crew, airborne monitoring receivers, and ground radar observations, while also concluding that available information was insufficient to identify the phenomenon.[NCAS Files]files.ncas.orgFiles Condon Report, Case 5: B-47 Crew, Radar/Visual SightingNCAS FilesCondon Report, Case 5: B-47 Crew, Radar/Visual Sighting…
Why the ECM evidence remains disputed
The main argument for the importance of the ECM data is that it appears harder to explain than a single witness report. Electronic intelligence specialists were trained to interpret radar signals, and the RB-47 carried equipment specifically built for that purpose. Researchers who consider the case significant argue that a trained crew detecting an apparent radar emitter is different from an ordinary observer reporting an unusual light.[Center for UFO Studies]cufos.orgCenter for UFO Studies Classic UFO CasesCenter for UFO StudiesClassic UFO Cases - Center for UFO Studies…
However, the same evidence has limits. The original ECM recordings, radar photographs, and complete technical logs have not been available for modern analysis in the public record. The Condon investigation noted that promising records were expected to exist — including radar scope photographs and ECM data — but investigators were unable to obtain the complete documentation needed to reconstruct the event.[NCAS Files]files.ncas.orgFiles Condon Report Section III, Chapter 1: Field StudiesNCAS FilesCondon Report Section III, Chapter 1: Field Studies…
This missing technical material creates several unresolved questions:
- Was the detected signal definitely from a nearby airborne source?
- Could a known radar system, atmospheric effect, or electronic phenomenon have produced a misleading indication?
- Were the reported movements actual physical movements, or interpretations made from direction-finding equipment aboard a moving aircraft?
Because the RB-47’s ECM equipment measured signals rather than providing a conventional radar image, interpreting the contact depended heavily on operator experience and assumptions about how the signal should behave. A direction-finding receiver could indicate where a signal was coming from relative to the aircraft, but determining the true range and physical location of the emitter required additional information.[Ufologie]ufologie.patrickgross.orgUFOs at close sight: AIAA and the UFO problem, the RB-47 case…
The missing records problem
The documentary record is one of the biggest factors shaping later debate. When the University of Colorado’s scientific study examined the case in the late 1960s, investigators attempted to locate Air Force documentation, including possible intelligence and electronic records. They found that the case had not been preserved in the expected Project Blue Book files and that key materials were unavailable.[NCAS Files]files.ncas.orgFiles Condon Report Section III, Chapter 1: Field StudiesNCAS FilesCondon Report Section III, Chapter 1: Field Studies…
The absence of original instrument data does not prove that the encounter was extraordinary, but it prevents a definitive technical resolution. A complete dataset — including signal traces, frequencies, radar plots, timing information, and flight parameters — could potentially have allowed analysts to compare the event against known aircraft, radar sources, or electronic interference.
Instead, later assessments have relied largely on:
- crew testimony collected years after the event;
- partial official records;
- investigator reconstructions;
- competing interpretations of how Cold War radar and ECM systems operated.[NCAS Files]files.ncas.orgFiles Condon Report, Case 5: B-47 Crew, Radar/Visual SightingNCAS FilesCondon Report, Case 5: B-47 Crew, Radar/Visual Sighting…
What the radar evidence can and cannot prove
The RB-47 electronic evidence demonstrates that the incident involved more than a simple unexplained light in the sky. Multiple trained military personnel reported instrument readings connected with the sighting, and the case remains notable because the alleged detection involved both airborne and ground-based systems.[NCAS Files]files.ncas.orgFiles Condon Report, Case 5: B-47 Crew, Radar/Visual SightingNCAS FilesCondon Report, Case 5: B-47 Crew, Radar/Visual Sighting…
At the same time, radar and ECM evidence does not automatically establish the nature of the source. A detected electromagnetic signal confirms that equipment received something, but identifying the origin requires reliable calibration data, records, and context. The surviving evidence supports the conclusion that the RB-47 crew experienced a complex and unusual detection event; it does not by itself establish what the detected source was.[NCAS Files]files.ncas.orgFiles Condon Report Section III, Chapter 1: Field StudiesNCAS FilesCondon Report Section III, Chapter 1: Field Studies…
The enduring significance of the RB-47 case therefore lies in the gap between detection and identification. The incident remains a classic example of how sophisticated military sensors can make an aerial mystery more compelling while also revealing the difficulty of turning partial observations into a final explanation.
