Did Radar Reveal an Unknown Aircraft?

Introduction

The radar evidence from the Lakenheath episode of 1956 is the part of the case that has kept it under serious discussion for decades. The central claim is not simply that witnesses saw unusual lights, but that radar operators at RAF Bentwaters and RAF Lakenheath recorded unidentified contacts, with later reports describing coordination between ground radar, an airborne interceptor, and visual observations. The surviving evidence suggests that military personnel were tracking something they could not confidently identify, but the records do not provide a complete radar dataset that can prove what the targets were.[NCAS Files]files.ncas.orgFiles Condon Report, Sec III, Chapter 5: Optical & Radar AnalysisNCAS FilesCondon Report, Sec III, Chapter 5: Optical & Radar Analysis…

The importance of the radar record lies in the combination of factors: trained operators, multiple radar stations, attempted interception, and a Cold War air-defence setting where unusual returns were taken seriously. At the same time, the evidence has major limits. The original radar tapes are not publicly available, the surviving documentation is largely narrative rather than a full technical dataset, and later analysts have disagreed over whether the returns represented an unknown aircraft, radar effects, atmospheric phenomena, or several separate events.[The Cold File]thecoldfile.com1956 lakenheath bentwatersThe Cold FileTwo Bases, Three Radars, One Interceptor: The Lakenheath-Bentwaters Incident, 1956 | The Cold FileMay 28, 2026…Published: May 28, 2026

Bentwaters and Lakenheath radar reports

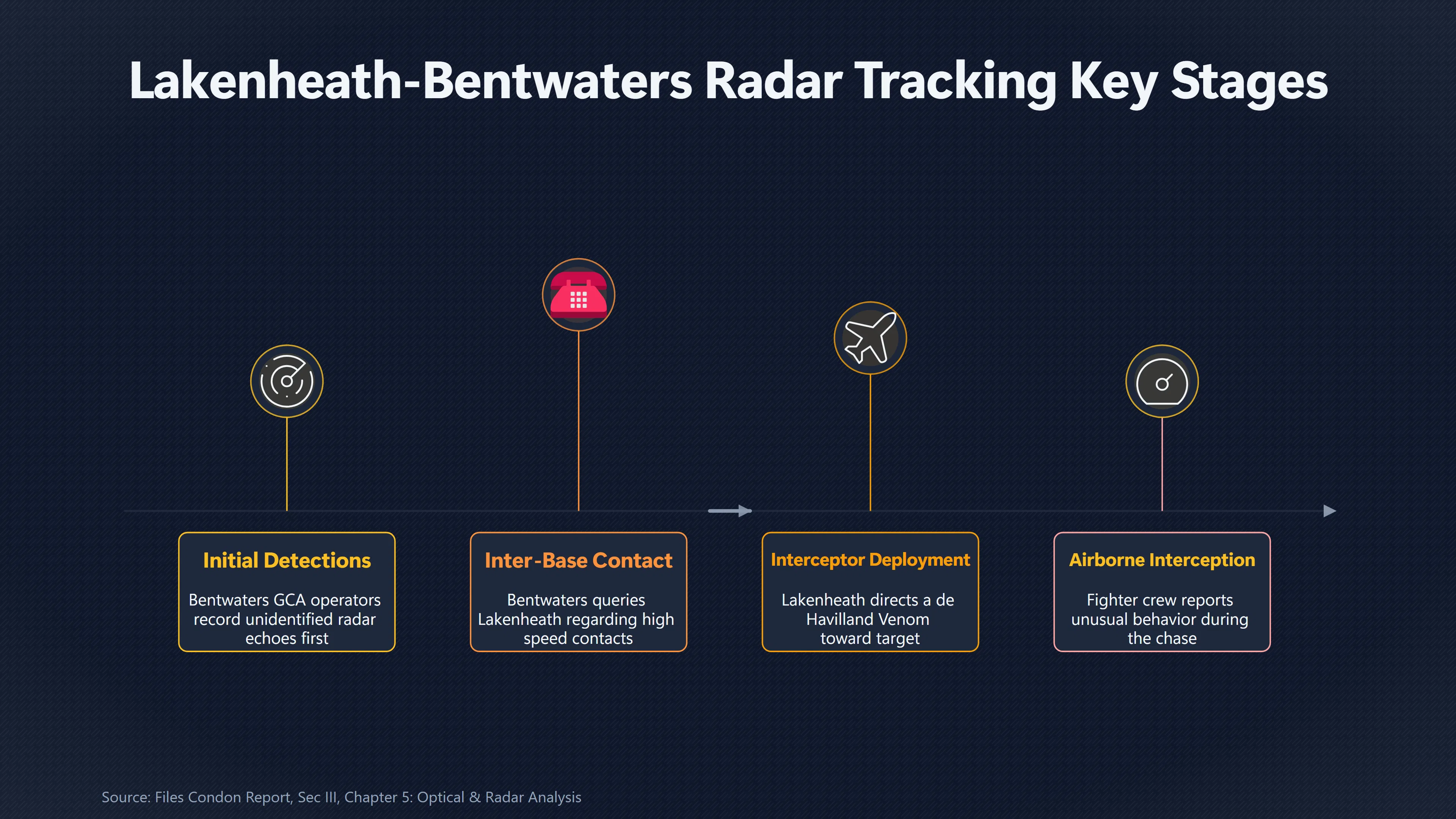

The first major radar activity occurred at the United States Air Force installation at RAF Bentwaters in Suffolk. According to later reconstructions based on Project Blue Book records, Bentwaters Ground Controlled Approach (GCA) radar operators reported a series of unidentified radar echoes before contacting nearby RAF Lakenheath. One of the most frequently cited moments in the case was a telephone call asking whether Lakenheath had radar contacts moving at extremely high apparent speeds.[Nicap]nicap.orgThe Lakenheath CaseThe Lakenheath Case - Thayer…

The Bentwaters reports are significant because they involved radar operators interpreting returns in real time rather than simply reviewing unusual marks after an event. The operators were accustomed to monitoring aircraft activity, and the reported behaviour of some returns appeared inconsistent with ordinary aircraft performance as understood at the time. However, the surviving accounts do not provide enough raw information to independently reconstruct every movement, range calculation, or radar error possibility.[The Cold File]thecoldfile.com1956 lakenheath bentwatersThe Cold FileTwo Bases, Three Radars, One Interceptor: The Lakenheath-Bentwaters Incident, 1956 | The Cold FileMay 28, 2026…Published: May 28, 2026

RAF Lakenheath then became the focus of the most famous tracking sequence. The Lakenheath radar facility reportedly followed an unidentified contact and assisted in directing an RAF de Havilland Venom interceptor towards it. According to the account later examined by the Condon Committee, the fighter crew obtained radar contact with the target and reported unusual behaviour during the attempted interception.[NCAS Files]files.ncas.orgFiles Condon Report, Sec III, Chapter 5: Optical & Radar AnalysisNCAS FilesCondon Report, Sec III, Chapter 5: Optical & Radar Analysis…

The case therefore differed from many contemporary UFO reports because the radar evidence was not isolated. Supporters of the case argue that the apparent agreement between separate radar installations and the fighter’s airborne radar made a simple misidentification less likely. Critics respond that the precise relationship between each radar contact is unclear, meaning that separate radar events may have been combined into one narrative over time.[The Council]aliencouncil.comThe Council RAF Lakenheath–Bentwaters radar–visual incident… · The CouncilThe Council RAF Lakenheath–Bentwaters radar–visual incident… · The Council

Tracking details and data limits

A major challenge in evaluating the Lakenheath radar evidence is that the public record contains descriptions of radar behaviour rather than a complete technical archive. Modern investigators would normally want original radar recordings, calibration information, operator logs, signal characteristics, and independent tracking data. For Lakenheath, much of that material is unavailable, leaving researchers dependent on written reports and later interviews.[The Cold File]thecoldfile.com1956 lakenheath bentwatersThe Cold FileTwo Bases, Three Radars, One Interceptor: The Lakenheath-Bentwaters Incident, 1956 | The Cold FileMay 28, 2026…Published: May 28, 2026

The reported speeds are among the most debated aspects of the case. Some accounts describe extremely high apparent velocities, far beyond conventional aircraft capabilities of the 1950s. These figures became a major reason the incident attracted attention, but apparent radar speed can be affected by measurement assumptions, plotting errors, tracking discontinuities, or false returns. A radar operator estimating movement from changing position information does not provide the same type of evidence as a modern digital track with recorded telemetry.[Nicap]nicap.orgThe Lakenheath CaseThe Lakenheath Case - Thayer…

Another unresolved question is whether all reported contacts represented the same object. The Lakenheath-Bentwaters episode included several phases: early Bentwaters radar detections, later Lakenheath tracking, visual reports, and the fighter interception. Some interpretations treat these as one continuous event, while others argue that the night may have involved multiple unrelated radar and visual phenomena.[The Cold File]thecoldfile.com1956 lakenheath bentwatersThe Cold FileTwo Bases, Three Radars, One Interceptor: The Lakenheath-Bentwaters Incident, 1956 | The Cold FileMay 28, 2026…Published: May 28, 2026

The absence of original radar recordings is therefore central to the debate. It does not eliminate the value of the testimony, but it prevents later researchers from testing every reported manoeuvre against the raw instrument data. The surviving evidence is strongest as a historical record of what military personnel observed and recorded, rather than as a complete measurement package.[The Council]aliencouncil.comThe Council RAF Lakenheath–Bentwaters radar–visual incident… · The CouncilThe Council RAF Lakenheath–Bentwaters radar–visual incident… · The Council

How analysts interpreted the returns

The most influential later analysis came from the University of Colorado’s Scientific Study of Unidentified Flying Objects, commonly known as the Condon Report. In its examination of the Lakenheath case, the report considered whether radar propagation effects, aircraft, meteors, or other conventional explanations could account for the observations. The analysis concluded that the case remained difficult to explain, while also acknowledging that conventional explanations could not be completely ruled out.[NCAS Files]files.ncas.orgFiles Condon Report, Sec III, Chapter 5: Optical & Radar AnalysisNCAS FilesCondon Report, Sec III, Chapter 5: Optical & Radar Analysis…

One issue considered by analysts was anomalous radar propagation, sometimes called “anaprop”, where atmospheric conditions can create unusual radar effects. The Condon analysis discussed this possibility but noted difficulties in using it to explain the complete sequence of reported radar and visual observations.[NCAS Files]files.ncas.orgFiles Condon Report, Sec III, Chapter 5: Optical & Radar AnalysisNCAS FilesCondon Report, Sec III, Chapter 5: Optical & Radar Analysis…

Other explanations focused on more ordinary causes. Meteor activity was considered because the Perseid meteor shower was active around the date of the incident, and bright meteors can produce unusual visual impressions and radar effects. However, analysts found that meteors alone did not easily explain the reported controlled tracking behaviour and the interception sequence.[The Council]aliencouncil.comThe Council RAF Lakenheath–Bentwaters radar–visual incident… · The CouncilThe Council RAF Lakenheath–Bentwaters radar–visual incident… · The Council

Misidentified aircraft also remained a possible explanation. Cold War Britain contained extensive military air activity, and radar systems of the period had limitations compared with later technology. A conventional aircraft, a radar artefact, or a combination of unrelated events could potentially explain parts of the report even if no single explanation accounts for every detail.[NCAS Files]files.ncas.orgFiles Condon Report, Sec III, Chapter 5: Optical & Radar AnalysisNCAS FilesCondon Report, Sec III, Chapter 5: Optical & Radar Analysis…

Why the radar record remains disputed

The Lakenheath radar evidence occupies an unusual position in UFO research because it is neither a simple eyewitness story nor a fully documented technical case. The records show that trained military personnel reported unexplained radar contacts and that an interception effort followed. That makes the case historically important, especially for studies of Cold War air defence and unidentified aerial reports.[The Cold File]thecoldfile.com1956 lakenheath bentwatersThe Cold FileTwo Bases, Three Radars, One Interceptor: The Lakenheath-Bentwaters Incident, 1956 | The Cold FileMay 28, 2026…Published: May 28, 2026

However, the evidence does not settle the identity of the tracked objects. The strongest argument for an unknown aircraft or device is the apparent convergence of multiple radar observations, visual reports, and an interceptor encounter. The strongest argument against that interpretation is the lack of surviving raw radar data and the possibility that several ordinary effects were combined into a single extraordinary narrative.[The Council]aliencouncil.comThe Council RAF Lakenheath–Bentwaters radar–visual incident… · The CouncilThe Council RAF Lakenheath–Bentwaters radar–visual incident… · The Council

For that reason, the Lakenheath radar record remains valuable less as proof of a specific explanation and more as an example of the difficulties involved in interpreting historical sensor evidence. It demonstrates both the strength of instrument-based observations and the problems created when the underlying measurements are incomplete.[NCAS Files]files.ncas.orgFiles Condon Report, Sec III, Chapter 5: Optical & Radar AnalysisNCAS FilesCondon Report, Sec III, Chapter 5: Optical & Radar Analysis…
